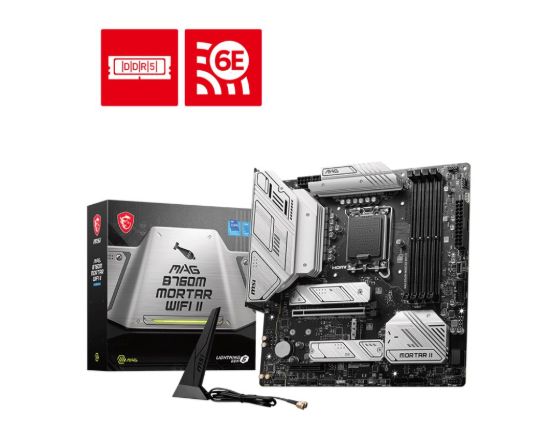

MSI MB Sc LGA1700 MAG B760M MORTAR WIFI II, Intel B760, 4xDDR5, 1xDP, 1x HDMI, mATX

Name: MSI MB Sc LGA1700 MAG B760M MORTAR WIFI II, Intel B760, 4xDDR5, 1xDP, 1x HDMI, mATX
SKU: 2648543
Price: 3965.00 CZK
Availability: InStock

Formát základní desky:micro ATX; Chipset:Intel B760; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:1; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0

Výrobce: MSI

Dostupnost: na objednávku - obvykle (14 dnů).

Kód: 2648543

Typové označení výrobce : MAG B760M MORTAR WIFI II

GTIN (EAN): 47113771401190

dodací lhůta : 1-2 dny

3 965,00 Kč bez DPH

Množ.:

MSI MAG B760M MORTAR WIFI II

MAG B760M MORTAR WIFI II is designed for gamers, providing a stable, solid, and durable foundation for compact mATX PC builds. Coming up with Wi-Fi 6E, 2.5G LAN, DDR5, PCIe 5.0 solutions, and 3 M.2 connectors, it's ready for Intel 14th Gen and 13th Gen Core processors.

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSET

INTEL B760

CPU

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA1700

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile

ONBOARD GRAPHICS

1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

STORAGE

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN + WIRELESS LAN

Realtek 2.5Gbps LAN

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)

BACK PANEL I/O

1x DisplayPort 1.4
1x USB 3.2 Gen 2 10Gbps Type-A
1x 2.5G LAN Port
2x Wi-Fi / Bluetooth
5x HD Audio Connectors
4x USB 2.0
1x HDMI™ 2.1 Port
1x USB 3.2 Gen 2x2 20Gbps Type-C
2x USB 3.2 Gen 2 10Gbps Type-A

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

mATX
243.84 x 243.84mm
