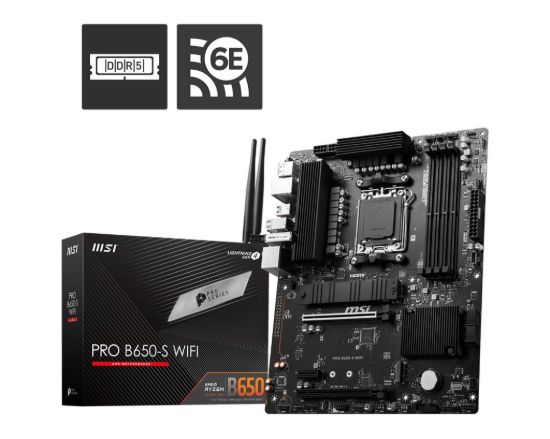

MSI MB Sc AM5 PRO B650- S WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, WI- FI

CPU

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

CHIPSET

AMD B650

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPU

AMD MULTI-GPU Support

STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

Supports RAID 0 and RAID 1 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek 8125BG 2.5G LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

1x DisplayPort
1x 2.5G LAN
1x USB 3.2 Gen 2 10Gbps (Type-A)
4x USB 3.2 Gen 1 5Gbps (Type-A)
2x Wi-Fi / Bluetooth
6x Audio connectors
1x Flash BIOS Button
1x HDMI™
2x USB 3.2 Gen 2 10Gbps (Type-A)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

FORM FACTOR

ATX
243.84 x 304.8 mm
