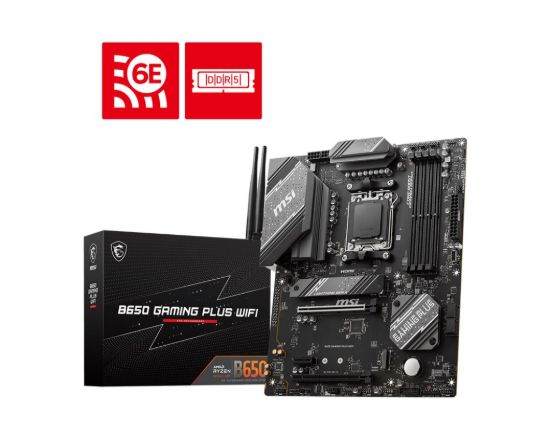

MSI MB Sc AM5 B650 GAMING PLUS WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, ATX

Name: MSI MB Sc AM5 B650 GAMING PLUS WIFI, AMD B650, 4xDDR5, 1xDP, 1xHDMI, ATX
SKU: 2648455
Price: 2985.32 CZK
Availability: InStock

Formát základní desky:ATX; Chipset:AMD B650, AMD; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1; PCI Express x16:2; PCI Express x1:1; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; USB 2:4; USB 3:9

Výrobce: MSI

Dostupnost: 100 ks skladem

Kód: 2648455

Typové označení výrobce : B650 GAMING PLUS WIFI

GTIN (EAN): 47113770980520

dodací lhůta : 1-2 dny

2 985,32 Kč bez DPH

Množ.:

MSI B650 GAMING PLUS WIFI

B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

CPU

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

Chipset

AMD B650

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS

1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPU

AMD MULTI-GPU Support

STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Realtek 8125BG 2.5G LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

1x DisplayPort
1x 2.5G LAN
1x USB 3.2 Gen 2 10Gbps (Type-A)
4x USB 3.2 Gen 1 5Gbps (Type-A)
2x Wi-Fi / Bluetooth
6x Audio connectors
1x Flash BIOS Button
1x HDMI™
2x USB 3.2 Gen 2 10Gbps (Type-A)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION (W × L)

ATX
243.84mmx304.8mm

BOX CONTENT

1x Wi-Fi Antenna
1x SATA Cable
1x I/O Shield
1x Quick Guide
2x EZ M.2 Clips
